Overview

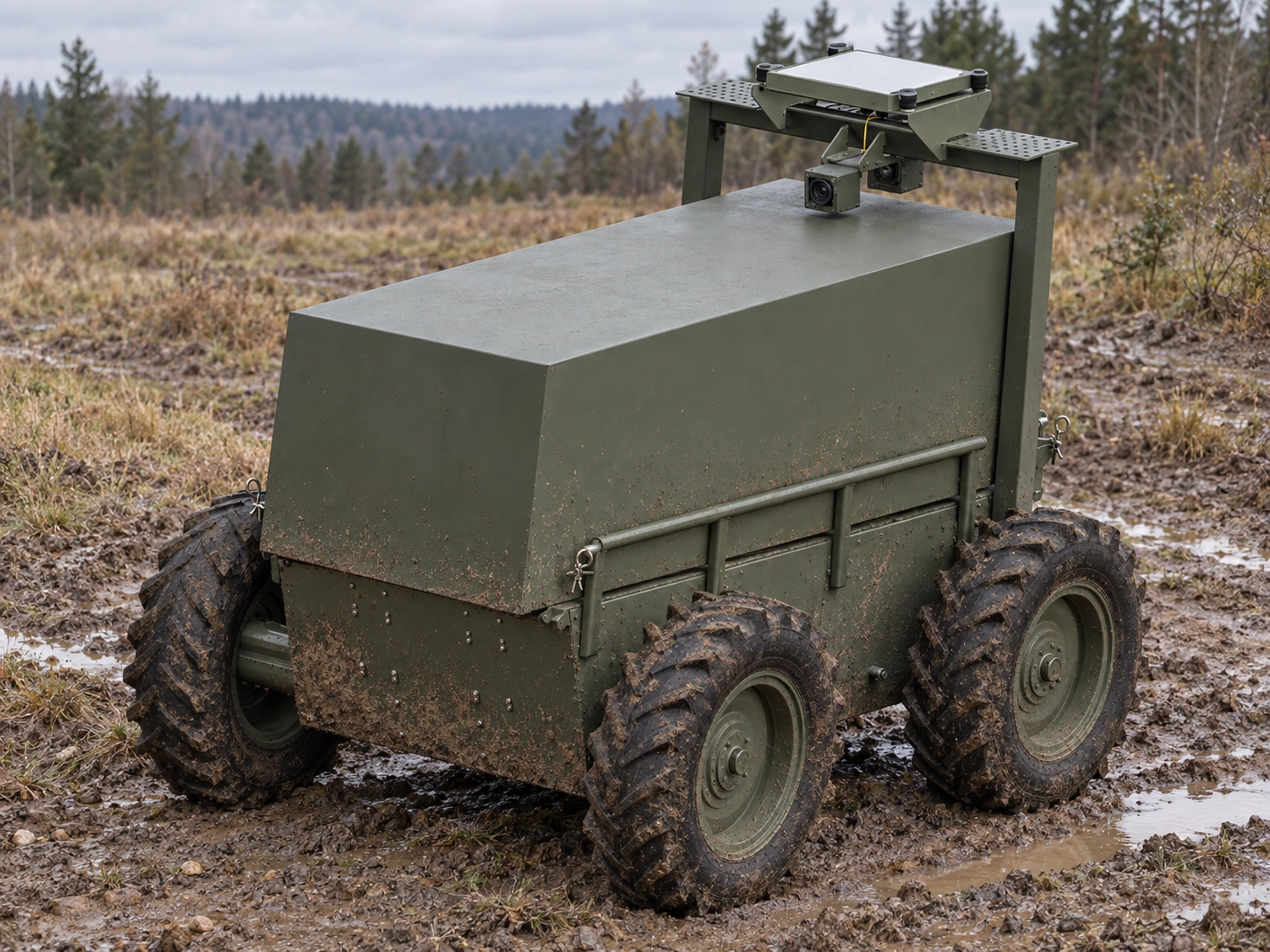

The Wheeled CASEVAC UGV is based on Milmech Systems’ 350 kg payload wheeled UGV platform, configured with a dedicated CASEVAC capsule for casualty evacuation.
The platform is designed to enable remote evacuation of wounded personnel from high-risk and frontline environments while reducing the need to expose additional personnel during casualty recovery operations.
The CASEVAC capsule is integrated onto the same modular 4x4 electric UGV platform used for logistics and mission-support applications. This allows a common vehicle architecture to be configured for either cargo transport or casualty evacuation depending on operational requirements.
Designed for demanding terrain and military environments, the platform combines remote operation, long-range communications and modular mission integration.
Key Capabilities
- Payload capacity up to 350 kg
- Dedicated CASEVAC capsule for casualty evacuation
- Based on the Wheeled Logistics UGV – 350 kg platform
- 4x4 wheeled unmanned ground platform
- Remote operation
- Designed for casualty recovery from high-risk environments
- Modular platform architecture
- Adaptable communication and control architecture
- Designed for operation in demanding terrain and military environments
Technical Specifications
- Platform: 4x4 wheeled UGV
- Configuration: CASEVAC capsule
- Payload capacity: 350 kg
- Drive type: Electric
- Maximum speed: ≥12 km/h
- Operational range: 50 km
- Ground clearance: 230 mm
- Vehicle dimensions: 1800 x 1250 x 1600 mm
- Vehicle weight: 600 kg
- Connection: Starlink, LTE, RF
Applications
Casualty evacuation, wounded personnel recovery, frontline CASEVAC operations, medical logistics and remote transport in high-risk environments.
